首先呢,SQLite 並不是像一般大型資料庫一樣要先建立好資料庫的實體

ex : 建立資料庫、建立資料表、計設資料表欄位之類的~

然後再經由程式進行存取,SQLite 是經由 Android 幫你建立的 (十分不習慣)

所以要繼承 SQLiteOpenHelper 然後來建立一個資料表



以下是步驟

首先建立一個 class 叫做 DBHelper 然後繼承 SQLiteOpenHelper

  package com.android.myapp;

  public class DBHelper extends SQLiteOpenHelper {


  }

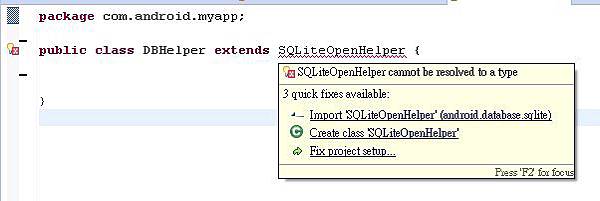

然後滑鼠移到繼承的 SQLiteOpenHelper 時會出現

Import SQLiteOpenHelper

按下去就會自動產生 code

a

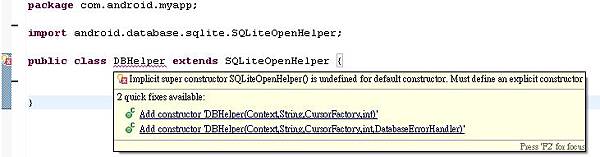

然後滑鼠在移到劃紅線的 DBHelper 這個 Class 名稱

會出現 Add constructor DBHelper(Context,.....................)

也是點下去就會自己產生 code

b

 然後幾乎什麼 code 都還沒寫,程式碼就會長這樣

package com.android.myapp;

import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteDatabase.CursorFactory;
import android.database.sqlite.SQLiteOpenHelper;

public class DBHelper extends SQLiteOpenHelper {

	public DBHelper(Context context, String name, CursorFactory factory,
			int version) {
		super(context, name, factory, version);
		// TODO Auto-generated constructor stub
	}

	@Override
	public void onCreate(SQLiteDatabase db) {
		// TODO Auto-generated method stub

	}

	@Override
	public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
		// TODO Auto-generated method stub

	}


}

其中覆寫的 onCreate 指的是如果 Android 載入時找不到生成的資料庫檔案,就會觸發 onCreate

onUpgrade 則是如果資料庫結構有改變了就會觸發 onUpgrade

所以很明顯的我們要把產生資料表的 SQL 寫在這 onCreate

然後首先我們要先定義資料庫名稱與版本,所以請看 line 8 ~ 10

package com.android.myapp;
import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteDatabase.CursorFactory;
import android.database.sqlite.SQLiteOpenHelper;

public class DBHelper extends SQLiteOpenHelper {
	private final static int _DBVersion = 1; //<-- 版本
	private final static String _DBName = "SampleList.db";	//<-- db name
	private final static String _TableName = "MySample"; //<-- table name
	public DBHelper(Context context, String name, CursorFactory factory,
			int version) {
		super(context, name, factory, version);
		// TODO Auto-generated constructor stub
	}

	@Override
	public void onCreate(SQLiteDatabase db) {
		// TODO Auto-generated method stub

	}

	@Override
	public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
		// TODO Auto-generated method stub

	}

}

然後程式中有一段  super(context, name, factory, version);

super 關鍵字指的是目前這個 class 的上一層,也就是 SQLiteOpenHelper

我們把剛剛定義的變數傳給 name 與 version

於是就變成

super(context, _DBName, factory, _DBVersion);

再來我們就分別在 onCreate 與 onUpgrade 放入SQL的命令

所以最後就會如下

package com.android.myapp;

import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteDatabase.CursorFactory;
import android.database.sqlite.SQLiteOpenHelper;

public class DBHelper extends SQLiteOpenHelper {

	private final static int _DBVersion = 1;
	private final static String _DBName = "SampleList.db";
	private final static String _TableName = "MySample";
	public DBHelper(Context context) {
		super(context, _DBName, null, _DBVersion);
		// TODO Auto-generated constructor stub
	}


	@Override
	public void onCreate(SQLiteDatabase db) {
		// TODO Auto-generated method stub
		final String SQL = "CREATE TABLE IF NOT EXISTS " + _TableName + "( " +
		                       "_id INTEGER PRIMARY KEY AUTOINCREMENT, " +
				               "_TITLE VARCHAR(50), " +
		                       "_CONTENT TEXT," +
				               "_KIND VARCHAR(10)" +
				           ");";
        db.execSQL(SQL);
	}
	@Override
	public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
		// TODO Auto-generated method stub
		final String SQL = "DROP TABLE " + _TableName;
        db.execSQL(SQL);
	}

}

這邊要注意的是好像一定要把 primary key 的名字設定為 _id,不然好像會 error

到此就寫完了



然後再來是應用

package com.android.myapp;
import android.webkit.WebSettings;
import android.webkit.WebView;
import android.webkit.WebViewClient;
import android.widget.TextView;
import android.widget.Toast;
import android.app.Activity;
import android.app.AlertDialog;
import android.os.Bundle;
import android.view.View;
import android.widget.*;
import android.content.ContentValues;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
public class DataList extends Activity implements View.OnClickListener {
    private Button sample1;
    private Button viewcode1;
    private DBHelper DH = null;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.datalist);
        findControl();
        setClick();
        openDB();
    }
    private void add(String Title,String Content,String Kind){
        SQLiteDatabase db = DH.getWritableDatabase();
        ContentValues values = new ContentValues();
        values.put("_TITLE", Title.toString());
        values.put("_CONTENT", Content.toString());
        values.put("_KIND", Kind.toString());
        db.insert("MySample", null, values);
    }
    private void openDB(){
    	DH = new DBHelper(this);
    }
    private void closeDB(){
    	DH.close();
    }

    private void findControl() {
    	sample1 = (Button)findViewById(R.id.sample1);
    	viewcode1 = (Button)findViewById(R.id.viewcode1);
    }

    private void setClick() {
        sample1.setOnClickListener(this);
    	viewcode1.setOnClickListener(this);
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        closeDB();
    }

	@Override
	public void onClick(View v) {

		//Toast popup = Toast.makeText(this, "hello", Toast.LENGTH_SHORT);
		//popup.show();
		if (v.getId() == R.id.sample1) {
			add("A","test","1");
			openDialog("test","1");
		} else if (v.getId() == R.id.viewcode1) {
			add("B","test","2");
			openDialog("","2");
		}
	}

	private void openDialog(String Msg,String Mode) {
		if (Mode =="1") {
		   TextView AlertMsg = new TextView(this);
	       AlertMsg.setText(Msg);
		   new AlertDialog.Builder(this).setTitle("效果").setView(AlertMsg).show();
		} else if (Mode == "2") {
		   String url = "file:///android_asset/Sample.html";
		   WebView AlertMsg = new WebView(this);
		   WebSettings websettings = AlertMsg.getSettings();
	       websettings.setSupportZoom(true);
	       websettings.setJavaScriptEnabled(true);
		   AlertMsg.setWebViewClient(new WebViewClient());
		   AlertMsg.loadUrl("file:///android_asset/Sample.html");
		   new AlertDialog.Builder(this).setTitle("程式碼")
		   .setView(AlertMsg).show();

		}

	}

}

這樣就可以寫入資料表了

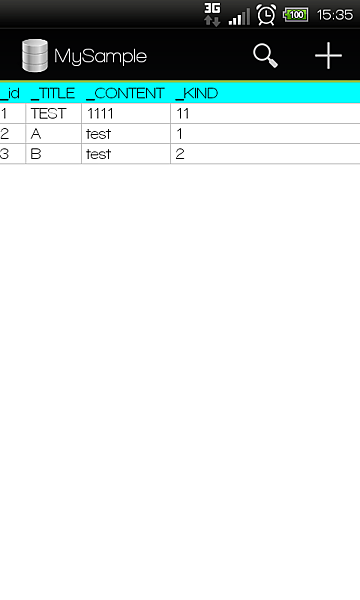

下圖是用手機裝的 APP "SQLite Editor" 檢視 SQLite 的結果

2012-11-14_15-35-01



結束
