Android - ListView + BaseAdapter 的應用－小雕雕的家

ListView 中使用 BaseAdapter

然後 ListItem 放入 ImageView + TextView + Button 的練習

預計做完會長這樣 (誰叫我是DQ 迷)

Clipboard02

首先這個例子的作法是將原本繼承的 Activity 改為繼承 ListActivity

這樣的話就不需要在畫面上再拉一個 ListView 了

然後再來是設計一下 ListView 裡面 item 的長相

所以新建了一個 XML 叫做 test.xml

如下 :

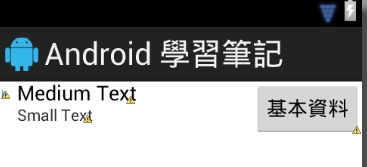

切到 Layout 畫面長這樣

Clipboard02

然後再來是程式碼

做法是自己做一個 MyAdapter 繼承 BaseAdapter 然後就可以針對內容 or 行為去客制了

繼承 BaseAdapter 後再覆寫 getCount()、getItem()、getItemId()、getView()

package com.myfirst.myapp;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import android.app.ListActivity;
import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.BaseAdapter;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;

//這邊把原本繼承的 Activity 改為 ListActivity

//然後 implements ListView.OnItemClickListener，方便等下捕捉 ListView item 的 click

public class Basic extends ListActivity implements ListView.OnItemClickListener {

List<Map<String, Object>> list = new ArrayList<Map<String, Object>>();

// 標題是DQ裡面史萊姆系的怪物名稱
private final String[] titleArr = new String[] {
   "スライム",
   "バブルスライム",
   "ホイミスライム",
   "スライムナイト",
   "キングスライム",
   "ドラゴスライム",
   "ぶちスライム",
   "スライムつむり",
   "ボックススライム",
   "スラッピー",
   "ストーンスライム",
   "メタルキング",
   "はぐれメタル",
};

//副標題是怪物編號
private final String[] subTitleArr = new String[] {
   "001",
   "002",
   "003",
   "004",
   "005",
   "006",
   "007",
   "008",
   "009",
   "010",
   "011",
   "012",
   "013"
};

//再來是網路找的怪物圖片
private final int[] imgArr = new int[] {
   R.drawable.a001,
   R.drawable.a002,
   R.drawable.a003,
   R.drawable.a004,
   R.drawable.a005,
   R.drawable.a006,
   R.drawable.a007,
   R.drawable.a008,
   R.drawable.a009,
   R.drawable.a010,
   R.drawable.a011,
   R.drawable.a012,
   R.drawable.a013,
};

@Override
public void onCreate(Bundle savedInstanceState) {
   super.onCreate(savedInstanceState);
   list = getData();
   MyAdapter adapter = new MyAdapter(this);
   setListAdapter(adapter);
}

//將需要的資料塞到 List 裡面

private List<Map<String,Object>> getData() {
   List<Map<String, Object>> list2 = new ArrayList<Map<String, Object>>();
   for(int i=0;i<titleArr.length;i++) {
      HashMap<String,Object> item = new HashMap<String,Object>();
      item.put("title", titleArr[i]);
      item.put("subtitle", subTitleArr[i]);
      item.put("mpic", imgArr[i]);
      list2.add(item);
   }
   return list2;
}

// ListView 的 item click
@Override
public void onItemClick(AdapterView<?> arg0, View arg1, int arg2, long arg3) {
   // TODO Auto-generated method stub
   Toast.makeText(Basic.this,"編號" + subTitleArr[arg2], Toast.LENGTH_SHORT).show();
}

public final class MyView {
   public TextView title;
   public TextView subtitle;
   public Button bt;
   public ImageView img;
}

// 實作一個 Adapter 繼承 BaseAdapter
public class MyAdapter extends BaseAdapter {
   private LayoutInflater inflater;
   public MyAdapter(Context context) {
      inflater = LayoutInflater.from(context);
   }

   @Override
   public int getCount() {
      // TODO Auto-generated method stub

//回傳這個 List 有幾個 item

return list.size();

}

   @Override
   public Object getItem(int position) {
      // TODO Auto-generated method stub
      return null;
   }

   @Override
   public long getItemId(int position) {
      // TODO Auto-generated method stub
      return 0;
   }

   @Override
   public View getView(final int position, View convertView, ViewGroup parent) {
      // TODO Auto-generated method stub
      MyView myviews = null;
      myviews = new MyView();
      convertView = inflater.inflate(R.layout.test, null);
      myviews.title = (TextView) convertView.findViewById(R.id.textView1);
      myviews.subtitle = (TextView) convertView.findViewById(R.id.textView2);
      myviews.bt = (Button) convertView.findViewById(R.id.button1);
      myviews.img = (ImageView) convertView.findViewById(R.id.imageView1);

      myviews.title.setText((String) list.get(position).get("title"));
      myviews.subtitle.setText((String) list.get(position).get("subtitle"));
      myviews.img.setImageResource(imgArr[position]);

      myviews.bt.setOnClickListener(new View.OnClickListener() {
         @Override
         public void onClick(View v) {
            Toast.makeText(Basic.this, titleArr[position], Toast.LENGTH_SHORT).show();
         }
      });
      return convertView;
   }
}
}

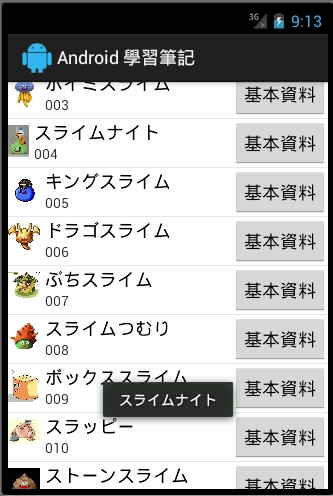

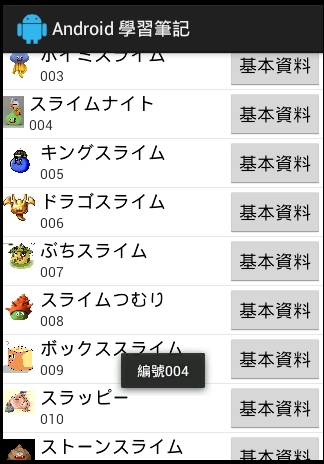

然後點"基本資料" 就會出現"怪物名稱" (基本資料不知去哪生 = = )

Clipboard02
